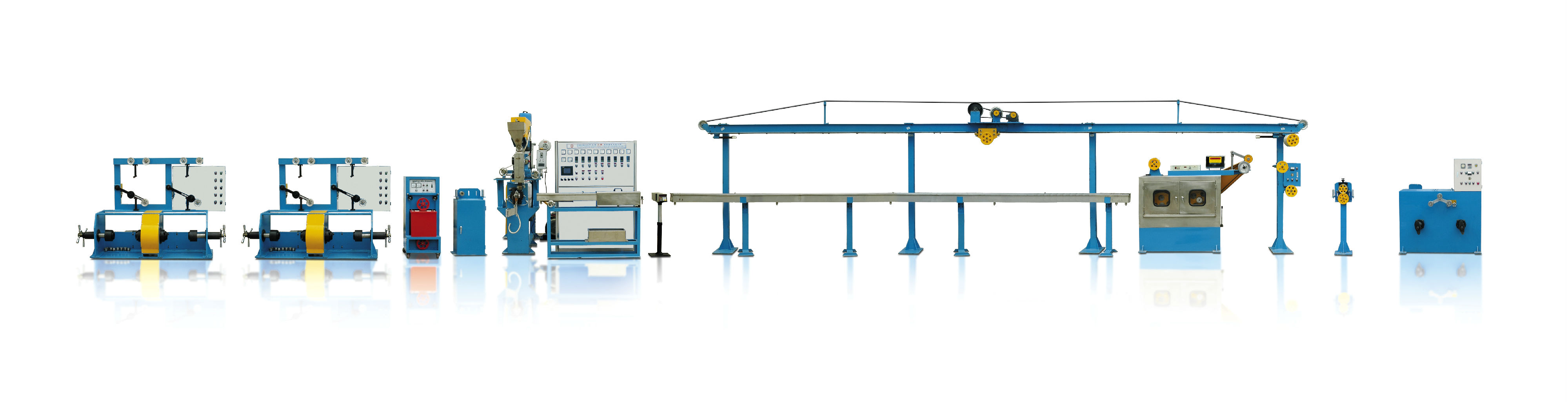

Building wire extrusion line


Application:

This insulation cable extrusion machine can be applied for extrusion of PVC, PE or other normal plastics, mainly used for production of BV, BVV building cables, power cables, computer cables, insulated wire extrusion, UL electronic wire, core cable of computer wire, core cable of power wire, automotive wire extrusion and etc.

There are some mains parts such as pay-off, take-up, water trough, capstan, control cabinet and etc.

Specification

ModeI	AW-50+35	AW-60+35	AW-70+35	AW-80+35
Pay-off type	Motorized type singIe axis tension pay off		No-axis magnetic power tension pay-off
Pay-off wire spooI	PN400-500 mm	PN500-600 mm	PN400-630 mm	PN630-800 mm
Screw diameter	Φ50 mm	Φ60 mm	Φ70 mm	Φ80 mm
Wire diameter	Φ0.6-4 mm	Φ0.8-8 mm	Φ1.5-12 mm	Φ3.0-30 mm
Wire speed	MAX 400 M/min	MAX 400 M/min	MAX 400 M/min	MAX 400 M/min
Take-up spool	PN400-500	PN400-500	PN500-630	PN800-1250
EIectricaI controI	Frequency control + PLC control
