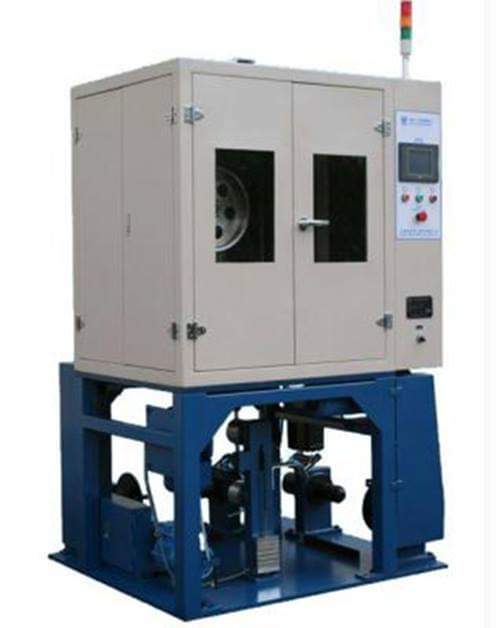

Heavy duty high speed braiding machine

Applicatiion:

This heavy duty high speed braiding machine uses frequency controlling technology which is programmable. It controls machine by computer, it can timings smoothly, weave with high speed and show all breakdown automatically. Meanwhile it has low noises, strong reliability and good wear ability. The spindle has automatically tension controlling mechanism, automatic lubricating system and safe fire fighting cover. This kind of machine can weave copper wires, and other metal wires, such as Mg-AL, alloy wires stainless steel, etc. The volume of the spindles of this machine, while being loaded to capacity, it can be loaded to 5 kg, comparing with other kinds of machines, this machine doesn't need to change springs but to slightly tune the springs tension when change different specification wires.

Specification:

	Name	Unit	Technical data
	Name	Unit	16E	24E
1	Braiding type	over	2×2	2×2
2	Braiding direction		Vertical	Vertical
3	Upper spindle	piece	8	12
4	Lower spindle	piece	8	12
5	Pitch	mm	7-94	9-138
6	Max. finished cable dia.	mm	Φ25	Φ10-45
7	Metal Wire diameter	mm	0.15～0.40	0.15～0.40
8	Additional pay off and take up	mm	Φ1250-2000	Φ1250-2000
