Planetary Stander
Application:
Planetary strander is mainly used for the twisting of copper, aluminum and ACSR, and can make fan-shaped or round compressed wire core, and can make the cabling of control the cables, steel armor or copper shield.

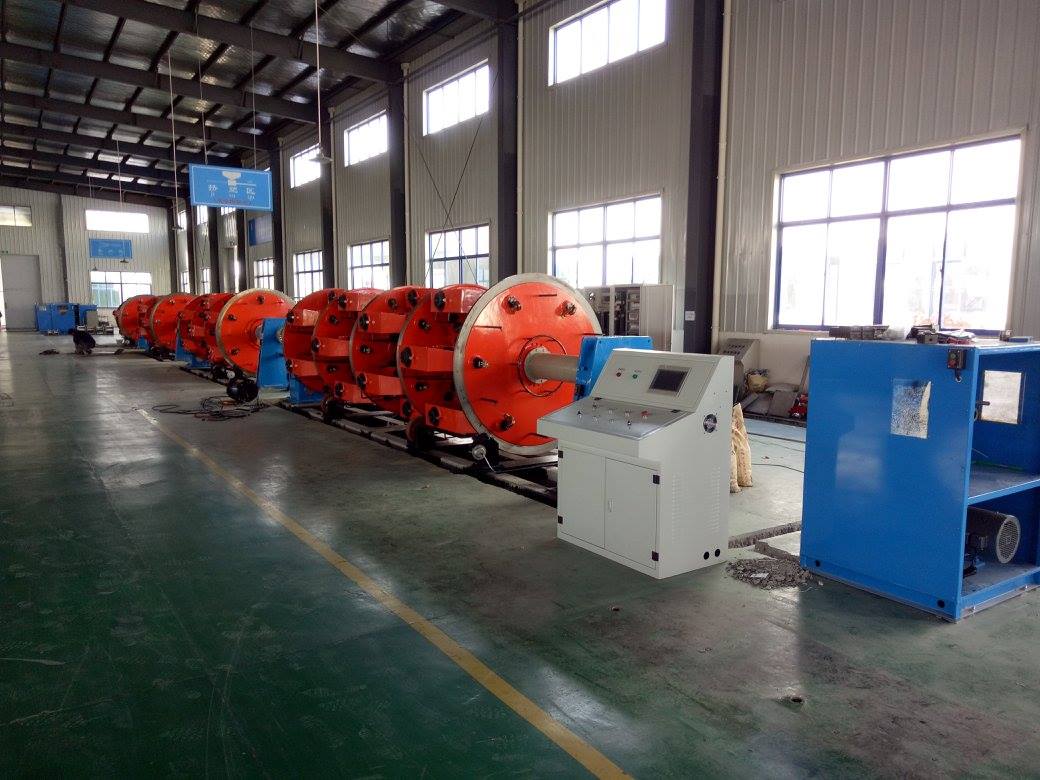

Planetary strander is mainly composed of pay-off, section stranders, die holder, wrapping device, meter counter, double wheel capstan, take-up & traverse rack, transmission system and electrical control system, etc. Planetary strander can also add steel and copper wrapping devices according to customer requirements.
Specification:
Type | JLY-400 | JLY-500 | JLY-630 |
Single wire die (mm) | Copper: Φ1.2-Φ3.5 | Φ1.2-Φ3.5 | |
Aluminum: Φ1.5-Φ3.5 | Φ1.5-Φ3.5 | ||
Insulation wire core: Φ5 | Insulation wire core: Φ7 | ||
Stranding die (MAX) (mm) | Φ35 | Φ45 | |
Stranding pitch (mm) | 34.7-866 | 42-1000 | 57-1280 |
Taping pitch (mm) | 11-181 | 11-188 | |
Capstan line speed (m/min) | 4.1-31 | 4.2-32 | |
Bobbin in the cage | PN400 | PND500 | PND630 |
Central pay off bobbin | PN800-PN1600 | ||
Take-up bobbin | PN1000-PN2000 | PN1250-PN2500 | |
Main motor (KW) | 45 (AC) | 55 (AC) | 75 (AC) |
|
