Application:

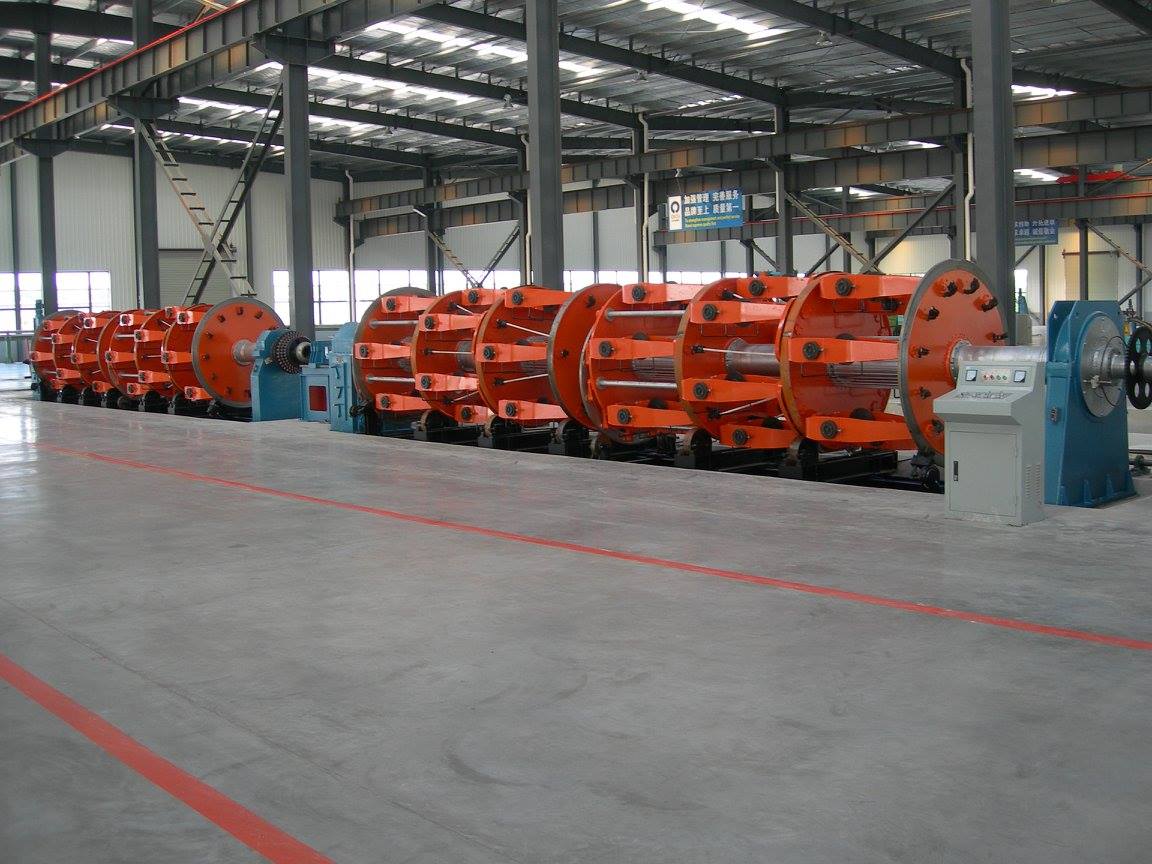

Steel wire amouring machine is mainly used for steel wire armoring of various types of cables, and also bare copper and bare aluminum wires. Steel wire amouring machine is mainly composed of pay-off racks, section of stranding cages, die holder, wrapping device, meter counter, capstan, take-up & traverse rack, transmission system and electrical control system, etc. Steel wire amouring machine can also add steel wrapping devices according to customer requirements.
Specification:
Type | KLY-500/36+36 | KLY-500/48+48 | KLY-560/48+48 |
Single wire die (mm) | Steel: Φ0.8-Φ5.0 | ||
Copper: Φ1.5-Φ5.0 | |||
Stranding die (MAX) (mm) | Φ120 | ||
Stranding pitch (mm) | 108-1938 | 125-2560 | |
Taping pitch (mm) | 11-183 | 11-199 | |
Capstan line speed (m/min) | 4.1-31 | 4.0-33.8 | |
Bobbin in the cage | PND500 | PND560 | |
Central payoff bobbin | PN1600-PN3150 | ||
Take-up bobbin | PN1600-PN3150 | ||
Main motor (KW) | 90 (AC) | 110 (AC) | 132 (AC) |
|
