Application:

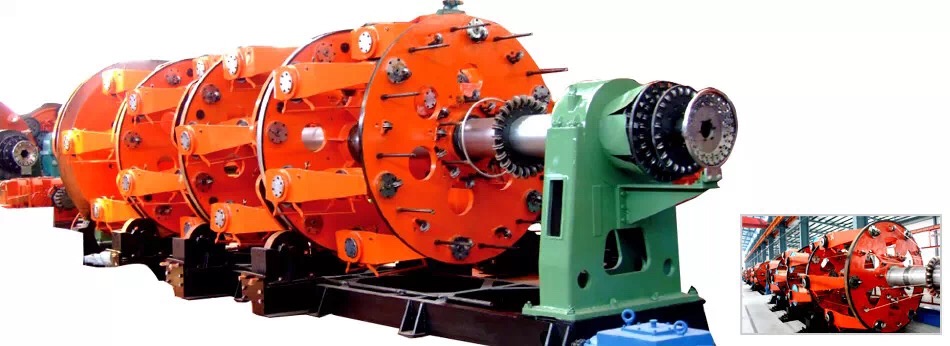

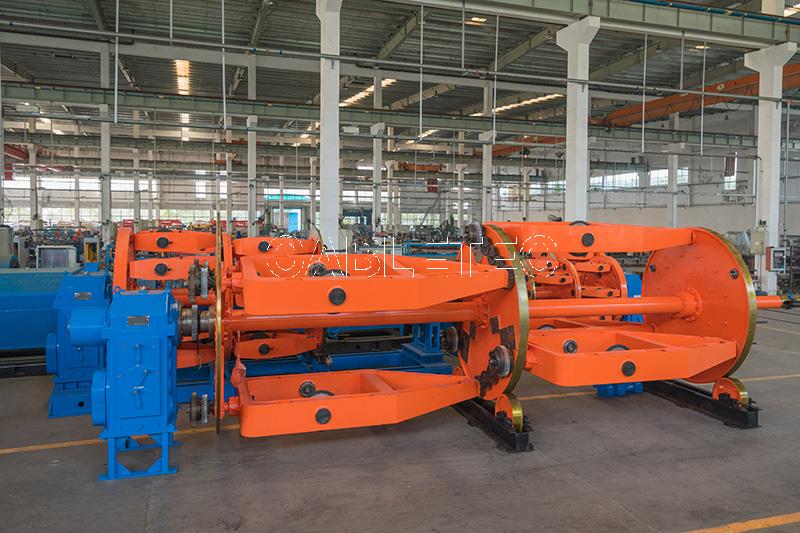

Laying up machine is mainly used for the cabling of power cables or control cables,and the stranded cables may be round or fan-shaped cables.Laying up machine is mainly composed of pay-off racks, stranding cages, die holder, wrapping equipment, steel wrapping device, meter counter, casptan, take-up & traverse rack, transmission system and electrical control system.
Type | CLY-630/3+3 | CLY-1000 | CLY-1250 | CLY-1600 | CLY-2000 |
Wire cross-section (mm2) | 4-16 | 6-150 | 30-240 | 50-300 | 50-400 |
Stranding die (MAX) (mm) | Φ40 | Φ60 | Φ80 | Φ100 | Φ120 |
Stranding pitch (mm) | 47.8-867 | 94-1550 | 183-3213 | 324-5893 | 462-8127 |
Taping pitch (mm) | 12-203 | 11-178 | 16-256 | 12-202 | 10-156 |
Armoring pitch (mm) | 14-232 | 12-207 | 18-293 | 14-238 | 11-179 |
Capstan line speed (m/min) | 4.56-34.7 | 4.22-30.96 | 5.9-43.7 | 4.6-34.8 | 3.7-26.9 |
Bobbin in the cage | PN630 | PN1000 | PN1250 | PN1600 | PN2000 |
Central payoff bobbin | PN800-PN1600 | None | |||
Take-up bobbin | PN800- PN1600 | PN1000- PN2000 | PN1250- PN2500 | PN1600-PN3150 | |
Main motor (KW) | 22 (AC) | 30 (AC) | 37 (AC) | 45 (AC) | 55 (AC) |
|
