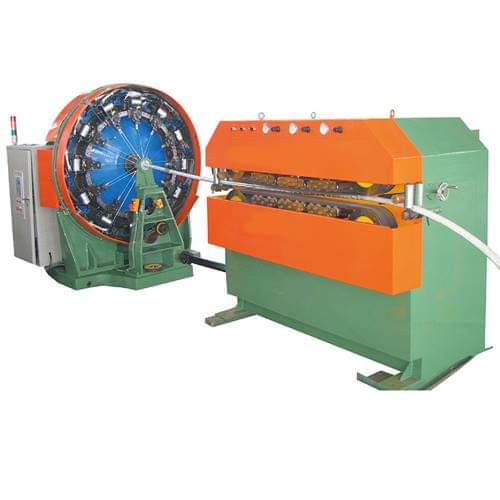

High-speed horizontal copper wire braiding machine

Application:

This high-speed horizontal copper wirebraiding machine is used in braiding heavy cable and tube materials and etc. When it is braiding, cable and tube materials can't be bent and destroyed easily.

The volume of the spindle of this machine is large, it is convenient to adjust its tension.

Its control system adopts the technologies of SCM and frequency conversion control, it has the functions of automatic lubricative system and safe fire fighting cover. The weave-machine is easy and convenient to control and use.

Specification:

	24 spindles	32 spindles	36 spindles	48 spindles
Braiding style	Two in two	Two in two	Two in two	Two in two
Braiding direction	Horizontal	Horizontal	Horizontal	Horizontal
Spindles	(12 inner, 12 outer)	(16 inner, 16 outer)	(18 inner, 18 outer)	(24 inner, 24 outer)
Wire diameter	Φ0.15 mm-Φ0.40 mm	Φ0.15 mm-Φ0.40 mm	Φ0.15 mm-Φ0.40 mm	Φ0.15 mm-Φ0.40 mm
Pitch	9.02-138.8 mm	24.5-246 mm	24.5-246 mm	28.6-288 mm
Max. cable core	Φ45	Φ75	Φ85	Φ115
Max. design speed	500 m/h	460 m/h	460 m/h	475 m/h
Coil size of pay-off and take-up	1000/1600 mm	1250/2500 mm	1250/2500 mm	1250/2500 mm
Traction way	Caterpillar	Caterpillar	Caterpillar	Caterpillar
