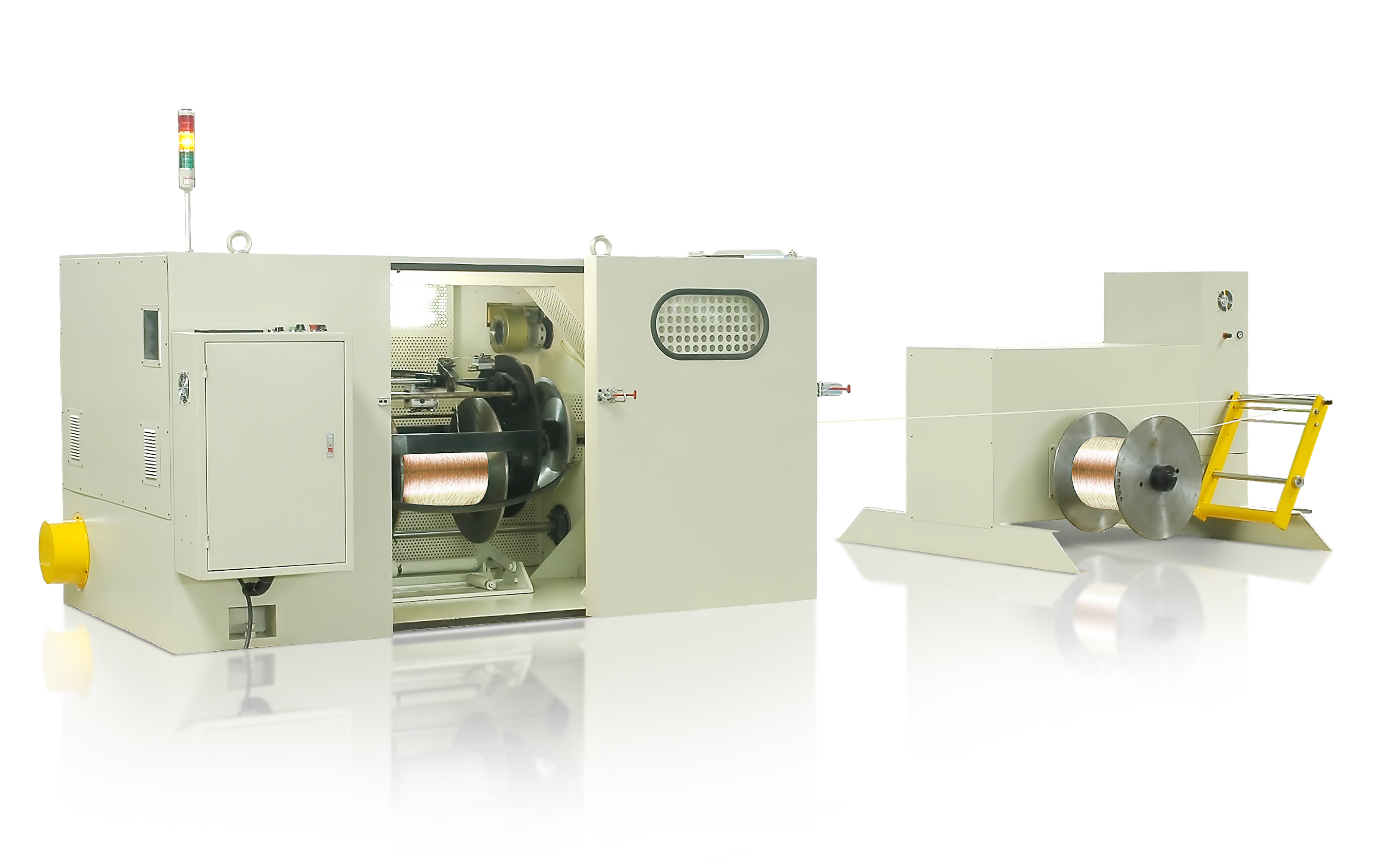

Double twsit bunching machine

Application:

Full-automatic bunching machine is mainly used in formal stranded and bunching of multi-strand copper wires, tinned wire, enamed wire, nickel-coated wire and copper wire with inner aluminum.

Specification

	500N	500A	630N	630C	800N	800B
*Max bobbin size (outer diametertotal length) (mm)**	?500*314	?500*314	?630*475	?630*475	?800*600	?800*600
Max cross section of inter bunch wire (mm2)	2	2	8	6		10
bunch wire diameter (mm)	0.08~0.32	0.08~0.41	0.18~0.8	0.23~0.64	0.8~3.2	0.15~0.8
Pitch range (mm)	5~50 automatic adjust	5.34~40.02 automatic adjustment	10~100 automatic adjust	26.19~75 automatic adjust	25~150 automatic adjustment	27.4~144.11automatic adjustment
Direction	From left to right or right to left
