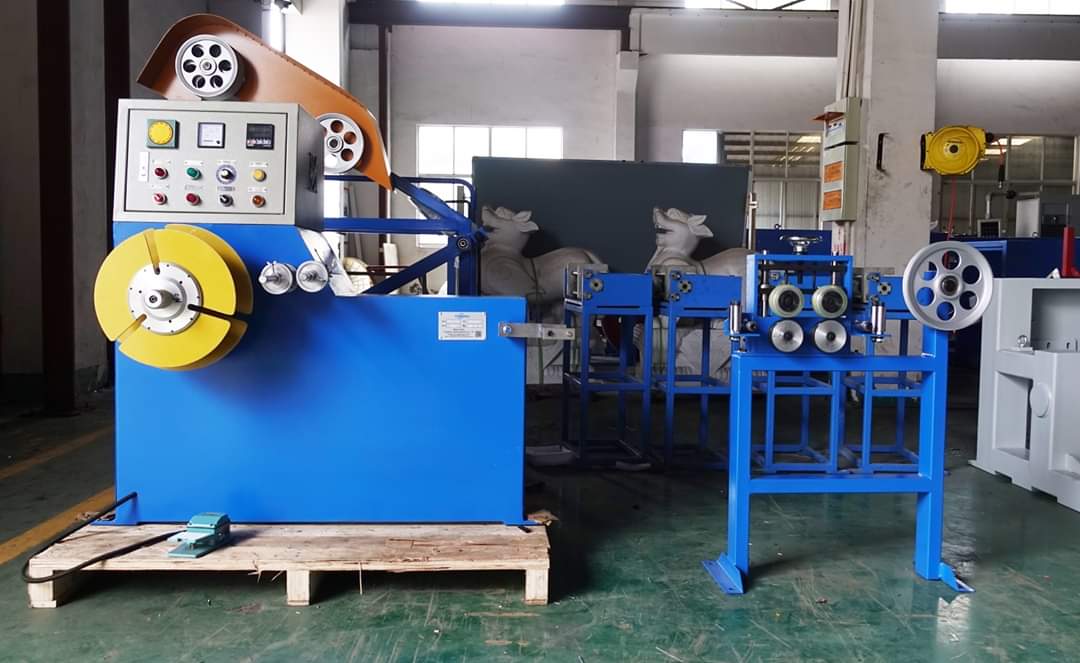

Middle cross-section Coiling Machine

Middle cross-section Coiling Machine

1. Equipment Consist:

No.	Description	Quantity
1	Φ1250mm pay off without shaft	1 Unit
2	Middle cross-section coiling machine	1 Unit
3	European style high-precision meter-counting device	1 Unit

2. Specification

2.1. Middle cross-section automatic cable coiling machine

2.1.1. Winding mode: Automatic winding;

2.1.2. Rotation speed of principle machine: 0-200 rpm;

2.1.3. Outside diameter of cable bundle: ≤Φ650mm;

2.1.4. Number of cable bundle slots: 3 slots;

2.1.5. Power of motor: 5HP Variable frequency control;

2.1.6. Inside diameter of cable bundle: Φ200mm (based on the client requirements);

2.1.7. Height of cable bundle: 60-150mm

2.1.8. Scope of Application: 10 mm2-70 mm2 (hard structure), 10 mm2 -95 mm2 (soft structure)
