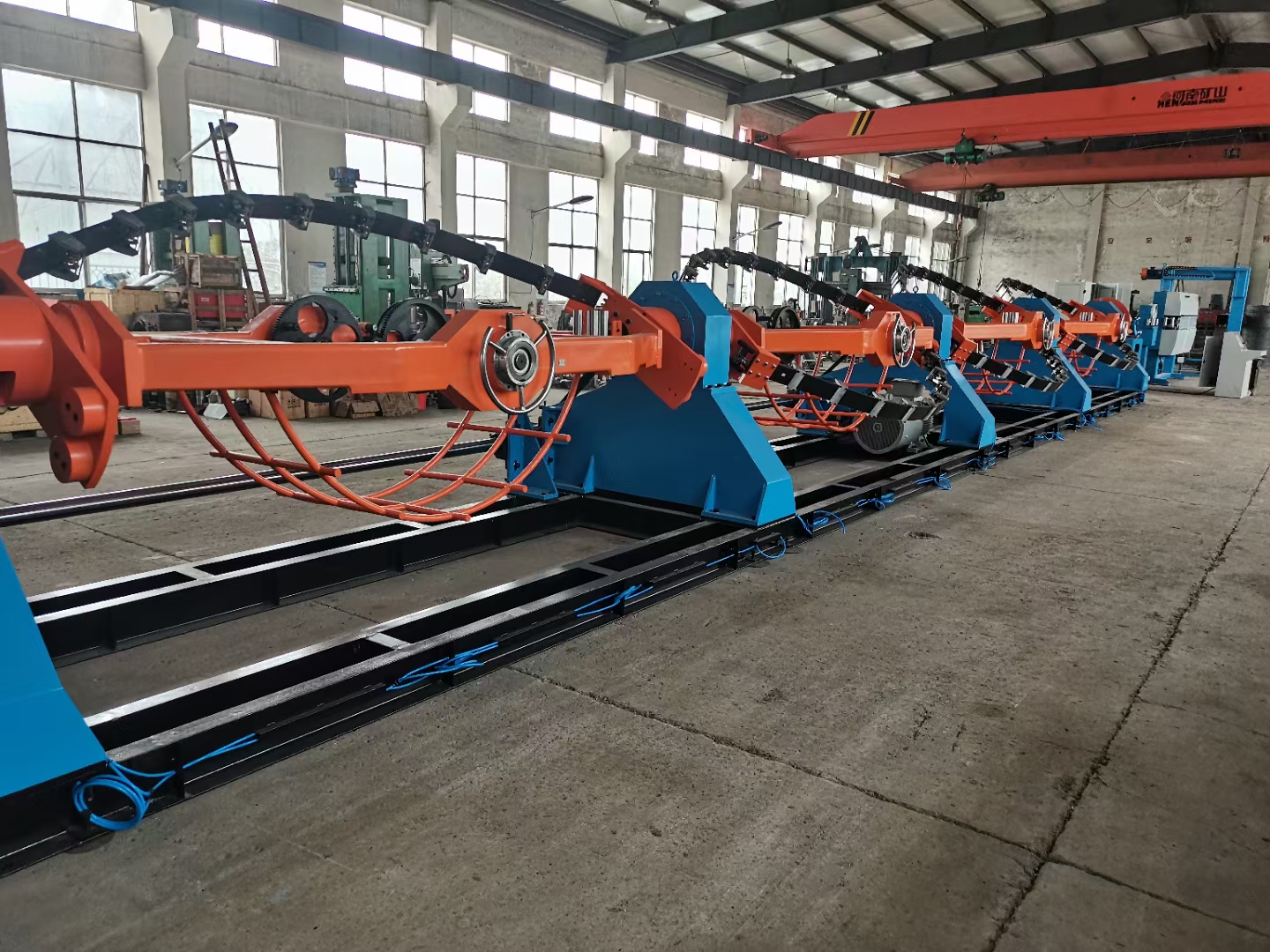

Bow type skip stranding machine

Bow strander/Skip strander for overhead cable/aerial cable

1. Equipment use

The bow skip strander is mainly used to KVV, mine cables, rubber sheathed cables, overhead cables and other soft structure cables.

2. Main technical parameters

2.1. Single core insulation diameter: 7.5-15 mm

2.2. Twisted wire diameter: 15-50 mm

2.2. Laying pitch: 77～773 mm

2.3. Capstan wheel diameter: 2000 mmspeed: 16～90 m/min

2.4. Pay off bobbin: PN1250

2.5. Take up bobbin: PN1250-PN2500

3. Component composition

No.	Name	Other choice	Qty.
1	Φ1250 Column type payoff	Φ1600 Column type payoff	1 set
2	Φ1250/5 bobbin stranding cage	Φ1600/5 bobbin stranding cage	1 set
3	Die holder	Die holder	1 set
4	Mechanical metering device	Mechanical metering device	1 set
5	2000 KG Caterpillar	Half-cut reinforced tapping machine	1 set
6	Φ2500 Column type take up with traverse	2000 KG Caterpillar	1 set
7	Electrical Control System	Φ2500 Column type take up with traverse	1 set
8	Safety fence	Electrical Control System and Safety fence	1 set
